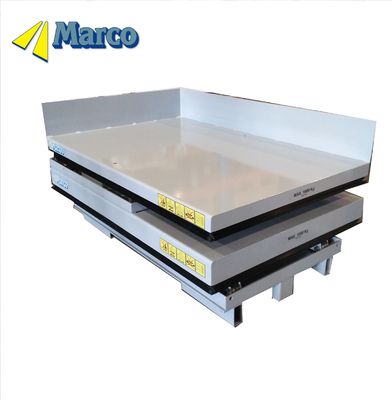

1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT

All Category

1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT

Detail Information

Product Description

Detail Information

Certification:

CE, ISO 9001

Model NO.:

M2-010090-D2+MT

Product Name:

Marco Hydraulic Tilt Scissor Lift Table

Capacity:

1000kg

Lift Stroke:

900mm

Close Height:

410mm

Transport Package:

Wooden Pallet

Trademark:

Marco

Origin:

Ningbo

HS Code:

8428909090

Supply Ability:

1200pieces/Year

Application:

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism:

Scissor Lift

Carrying Capacity:

Special Weight Level

Moves:

Stationary

Driven Type:

Hydraulic

Running Mode:

Stationary

Customization:

Available | Customized Request

Product Description

Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table

Product Description

Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table

SPECIFICATION
Capacity (Kg):	1000	Rated current (A):	2,4
Stroke (mm):	900	Control voltage (V):	24 AC
Closed height (mm):	410	Power pack location:	INT
Platform length (mm):	1500	Protection class:	IP55
Platform width (mm):	1000	Hydraulic oil:	K2
Lifting time (s):	20	Surface treatment:	ISO 32
Output (kW):	0.75	Colour:	RAL7040
Power supply (V):	3x400 AC	Lift category:	3
Frequency (Hz):	50	Declaration:	IIA
Frequency (Hz):	50	Declaration:	IIA

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
