Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L

All Category

Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L

Detail Information

Product Description

Detail Information

Certification:

CE, ISO 9001

Model NO.:

M7-030543-D2 + M3, 5-030112-D4/2L

Product Name:

Stationary Stage Hydraulic Scissor Lift Platform

Capacity:

3000kg

Lift Stroke:

6550mm

Close Height:

1700mm

Transport Package:

Wooden Pallet

Trademark:

Marco

Origin:

Ningbo

HS Code:

8428909090

Supply Ability:

1200pieces/Year

Application:

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism:

Scissor Lift

Carrying Capacity:

Special Weight Level

Moves:

Stationary

Driven Type:

Hydraulic

Running Mode:

Stationary

Customization:

Available | Customized Request

Product Description

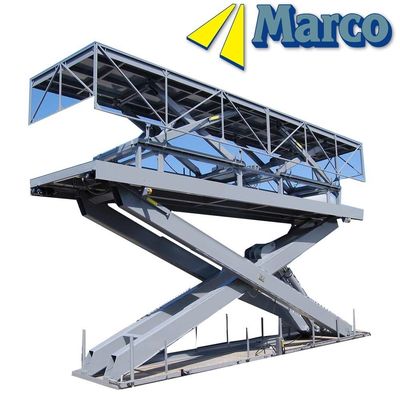

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances

Product Description

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances

Mechanical data
Capacity	3000 kg
Platform size	9490 / 8895 x 1955 mm
Frame size	8300 x 1560 mm
Lift stroke	6550 mm (5430 / 1120)
Lifting time	151 s (122 / 29)
Closed height	1700 mm (850 / 340 + 510)
Weight	11110 kg (7920 + 3190)

Other
？ The stage table is used during theatres,concerts and other scene performances.
？ The M7-lift table will be located in a shaft and is provided with 4 hydraulic shot bolts, 4 guide rollers and intermediate switches for stops at 3 levels below floor level (highest
level of M7-table), where stage equipment is stored.
？ The reason with a M3,5-lift table above the M7-table is to raise the last 1120 mm from floor level to stage level, where no possibility was to lock the table with shot bolts.
？ The upper platform has pipe steel framework on 3 sides for wooden panel attachment.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
